| اسم العلامة التجارية: | BABOS |
| رقم الطراز: | SF-43 |
| الـ MOQ: | 20pcs |
| السعر: | قابل للتفاوض |
| شروط الدفع: | خطاب الاعتماد، D/A، D/P، T/T، ويسترن يونيون |
| قدرة الإمداد: | 10،000 قطعة شهريا |

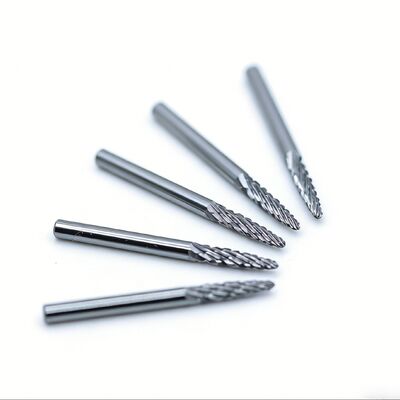

The SF-43 Tree Shape Solid Carbide Rotary Burr is a high-performance industrial tool engineered for precision grinding, deburring, and material removal. Featuring a 1/8" head diameter and a pointed tree profile, this burr is specifically designed for reaching narrow gaps, sharp angles, and intricate contours that standard cylindrical or ball-shaped bits simply cannot access.
Crafted from premium-grade tungsten carbide, it offers exceptional heat resistance and edge retention, allowing for extended use on hardened materials without losing its bite.
SF-43 Tree Radius End Solid Tungsten Carbide Burr
Brand: BABOS
Material: Tungsten Carbide
Cut Diameter:1/8"
Length of Flute: 9/16"
Shank Diameter:1/8"
OAL: 1.5"
Cut Type: Standard Double Cut(other cut types available: Single Cut, Aluminum Cut, Diamond Cut, Fine Cut, Wide Cut, Stainless Steel)
Other Available Sizes Related to Type F Carbide Burrs Both in Metric and Inch Standard:
| Metric Standard | |||||
| Shank Dia. (mm) | Cutter Dia. (mm) | Length of Cut (mm) | Overall Length. (mm) | Tool No. | The Combination of Head and Shank |
| d2 | d1 | l2 | l1 | ||
| 3 | 3 | 13 | 38 | F0313 | Solid |
| 5 | 13 | 51 | F0513 | Brazed | |
| 6 | 13 | 51 | F0613 | Brazed | |
| 6 | 6 | 18 | 63 | F0618 | Brazed |
| 8 | 20 | 65 | F0820 | Brazed | |
| 10 | 20 | 65 | F1020 | Brazed | |
| 11 | 25 | 70 | F1125 | Brazed | |
| 12 | 25 | 70 | F1225 | Brazed | |
| 16 | 25 | 70 | F1625 | Brazed | |
| 19 | 25 | 70 | F1925 | Brazed | |
| 8 | 12 | 25 | 70 | F1225 | Brazed |
| 16 | 25 | 70 | F1625 | Brazed | |
| 19 | 25 | 70 | F1925 | Brazed | |
| Inch Standard | |||||
| 1/8'' | 1/8'' | 1/2'' | 1/2'' | SF-42 | Solid |
| 1/4'' | 1/2'' | 2'' | SF-51 | Brazed | |
| 1/4'' | 3/8'' | 3/4'' | 1/2'' | SF-3 | Brazed |
| 7/16'' | 1'' | 3/4'' | SF-4 | Brazed | |
| 1/2'' | 3/4'' | 1/2'' | SF-13 | Brazed | |
| 5/8'' | 1'' | 3/4'' | SF-6 | Brazed | |
| 3/4'' | 1'' | 3/4'' | SF-7 | Brazed | |
| 3/4'' | 1/4'' | 3'' | SF-14 | Brazed | |
| 3/8'' | 3/4'' | 1/4'' | 1/4'' | SF-15 | Brazed |
Customization:
Cut Selection Guide:
| STANDARD CUT(M) |
STANDARD DOUBLE CUT (X) |
WIDE CUT (C) |
FINE CUT (F) |
ALUMINUM CUT(W) |
DIAMOND CUT(D) |
|
|
|
|
|
|
