Carbide Burr Shapes: The 13 Standard Profiles and What Each Is For
There are 13 standard carbide burr shapes, coded SA through SN. The letter is the shape; Most buyers who order the wrong burr have the material and the cut figured out. The problem is reach: they pick a profile that can't physically get at the surface. An SA where the job needs an end cut, a ball where a fillet was needed, a flame where the corner has to be square.
This chart covers all 13 profiles: what each one reaches and where each one fails. If you already know your shape code and just need speed data, head to the carbide burr RPM chart instead.
How Burr Shapes Are Coded
The 13-shape system is set out in ISO 7755 (hardmetal burrs), and the same SA–SN letters turn up in North American and European catalogues alike. Every burr we supply follows this coding, so a shape code on your purchase order will match what arrives.
Two things about the code trip up first-time buyers.
First, the letter is the shape, the number is the size. SA-1 through SA-9 are nine sizes of one shape. A catalogue listing "SA-1, SA-2, SA-3…" isn't offering nine shapes, just nine diameters and lengths of the same cylinder. And the number doesn't run on a universal scale. SA-5 and SD-5 are both "size 5" within their own families, but the two heads aren't the same dimension.
Second, similar-looking codes are genuinely different tools. SA, SB and SC are all cylinders. In use they behave nothing alike. The difference is entirely at the end of the head.
We can cross-reference DIN to ANSI on request. Send the drawing and we'll confirm the equivalent before you order.

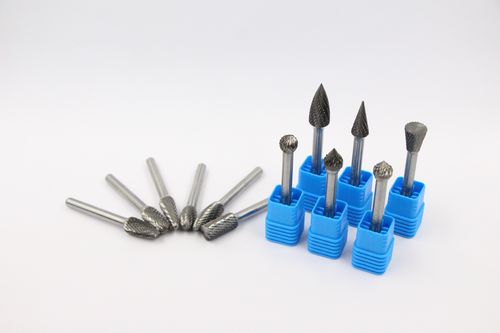

The 13 Shapes at a Glance
Code
Shape
What the end looks like
Best used for
Where it fails
SA
Cylindrical, no end cut
Flat top, no teeth on the top
Straight edges, weld dressing on plate, finishing slot walls
Cannot plunge — the flat face rubs and burnishes instead of cutting
SB
Cylindrical, with end cut
Flat top with cutting teeth
Plunge cutting, squaring a corner, opening and enlarging holes, spot facing
Plunge cutting, squaring a corner, opening and enlarging holes, spot facing

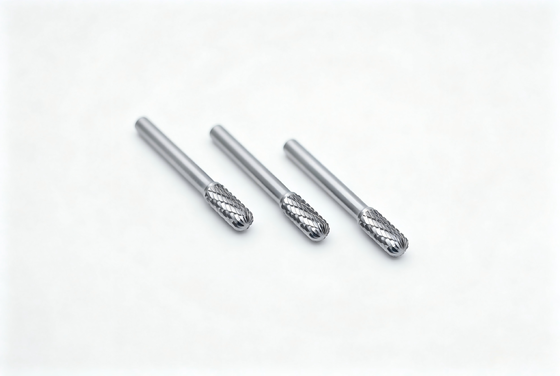

SC
Cylindrical, radius end
Rounded corner on a cylindrical body
Rounded corner on a cylindrical body
Tilting the tool leaves a visible step at the radius
SD
Ball
Full sphere
Contoured surfaces, radii, hollowing, deburring inside curves
Small contact patch — wears fast if you lean on it
SE
Oval (egg)
Elliptical
Soft contours, blending on curved castings, aluminium and brass
Will not sit flat; poor choice for flat-bottom work

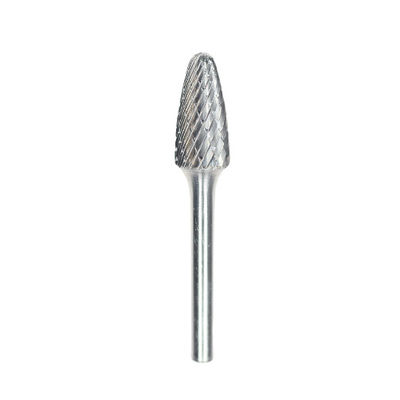

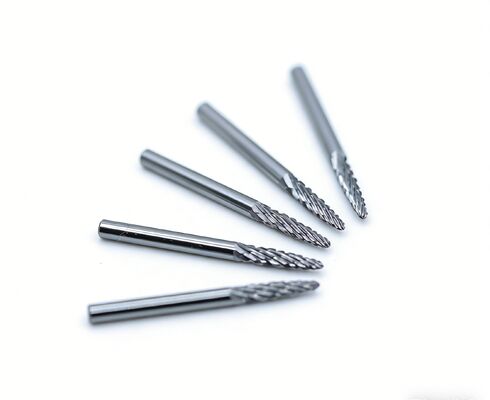

SF
Tree, radius end
Tapered body, rounded top
Bottom of deep pockets, internal fillets, cavity work
Long reach invites chatter — keep overhang short
SG
Tree, point end
Tapered body, pointed top
Starting a hole, chamfering, tight internal corners, opening narrow slots
The point is the weakest section; avoid side loading
SH
Flame
Flame profile
General deburring, weld seams, mixed contours — the best single-burr compromise
Good at many jobs, best at none
SJ
Cone, 60°, radius
60° included angle
Chamfering, deburring hole edges, 60° seat preparation
Angle must match the print or the seat will not seal
SK
Cone, 90°, radius
90° included angle
Chamfering, countersink preparation, edge breaking
Same — verify the angle before ordering
SL
Taper, radius end
Long taper with rounded tip
Tapered slots, dovetail forms, narrow angled recesses
A slightly bent shank makes a taper run out immediately
SM
Cone, point end
Sharp-pointed cone
Deburring small holes, fine detail, scribing
Tip is very fragile; unsuitable for heavy stock removal
SN
Inverted cone
Cone with the tip inverted
Back deburring, chamfering the far side of a through hole, T-slots
Needs clearance behind the workpiece
Five profiles cover most of our catalogue: SA, SB, SC, SG and SL. That's what die, mould, weld and fabrication work actually asks for. All 13 are available to order;
Cylindrical, Tree, Ball or Cone: Choosing by Task
Shape selection should start from the surface, not from the catalogue. Work backwards from what you need to reach:
Your task
Start with
Why this one
Deburring a straight edge or weld seam
SA, SC
Flat side wall presents the most teeth to a straight edge
Enlarging or opening a hole
SB, SG
Both cut on the end, so they can feed axially
Blending a fillet into a flat face
SC, SD
Radius matches the fillet without undercutting the face
Hollowing a curved surface
SD, SE
Spherical and elliptical profiles follow curvature in any direction
Cleaning the bottom of a deep pocket
SF, SL
Tapered body reaches past the walls without rubbing them
Back chamfering a through hole
SN
Only profile designed to cut on the far side
Chamfering a hole edge
SJ, SK
Fixed included angle gives a repeatable chamfer
One burr for mixed general work
SH
Flame profile is the accepted general-purpose compromise
Shape and Cut Have to Be Chosen Together
The shape decides where the burr can reach; the cut decides how it behaves once it's there. Specify one without the other and you get a tool that fits the job but finishes badly.
Single cut has one flute direction. It removes material fast and clears large chips, which suits aluminium, brass, copper and soft steel. Those same long chips are why it clogs on gummy materials without a lubricant.

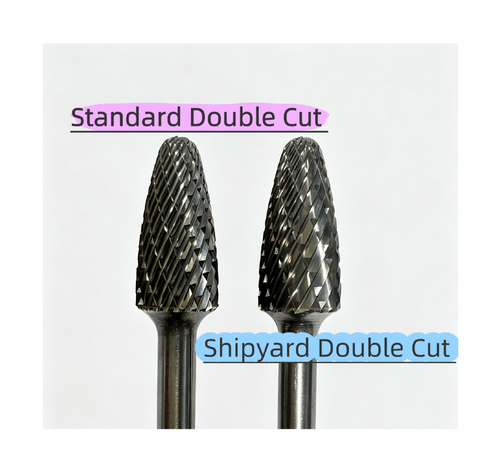

Double cut has a cross-hatch tooth pattern. It breaks chips into small fragments, cuts more smoothly and gives noticeably better control at the same feed. That makes it the default for stainless, hardened steel and any job where surface finish matters. Roughly three quarters of the burrs in our own catalogue are double cut, because that's what European and North American machine shops order for steel and stainless.

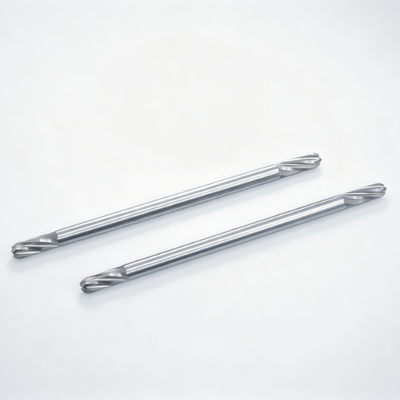

Non-ferrous (aluminium) cut is a coarse single flute with deep gullets, designed to stop aluminium welding itself to the teeth. On 6061 or casting alloys, a standard double cut will cost you more in cleaning time than the right tool costs to buy.
Diamond cut is a separate category entirely, for hardened steel above 55 HRC, ceramics and carbide itself.
Tooth geometry and flute count change how aggressively a given shape cuts, whichever cut you choose. That's covered separately in how carbide burr tooth geometry affects cutting performance.
Six Mistakes That Account for Most Wrong Orders
Ordering SA when the job needs SB. Both are cylinders, and the difference is invisible in a thumbnail photo. SA has a plain flat end and can't plunge. If any part of the operation feeds the tool into the work along its axis, you need SB. See cylindrical SB burrs.
Mixing 6 mm and 1/4" shanks. 1/4" is 6.35 mm. A 6 mm shank will slide into a 1/4" collet but only grips a narrow band and slips under load; a 1/4" shank won't go into a 6 mm collet at all. Both sizes are common in our range — 1/4" is roughly half the catalogue, 6 mm most of the rest — so check which collet your grinder actually has. The same trap applies to 3 mm versus 1/8" (3.175 mm).
Choosing head size for reach rather than for the grinder. A larger head needs more torque and runs at lower RPM. Put a 1/2" head on a low-power die grinder and you get chatter, not faster removal. Our speed and feed reference gives the ceiling by head diameter and material.
Picking a shape by appearance. A ball looks versatile, and on curved surfaces it is. On a flat edge the contact patch is a single point, which is why ball burrs wear out fastest in shops that deburr plate.
Ignoring the angle on cone burrs. SJ is 60°, SK is 90°. If a screw seat needs to seal, a chamfer at the wrong included angle will leak however clean the finish looks.
Buying a burr to fix a hardness problem. Carbide burrs cut hardened steel, stainless and cast iron comfortably, but not every grade suits every hardness. If the tool is glazing instead of cutting, you need a different grade or a diamond burr. Changing the shape won't fix it.
How to Specify a Burr Order
For an accurate quote we need five things: shape code and size (SA-5, for example), head diameter × length, shank diameter, cut type and quantity. If all you have is a drawing or a sample, send either. We'll identify the profile and confirm the equivalent code before production.
If you'd rather have a stocked assortment than individual sizes, carbide burr sets put the common shapes in one case. That's usually the cheaper way to work out which profiles your work actually needs.
Not sure which profile you need? Tell us the material, the feature you're deburring or blending, and the tool you're running it in. We'll recommend a shape, a cut and a starting RPM. If no standard profile will reach the feature, we can make a custom head to your drawing.
FAQ
What do the letters SA, SB and SC mean on a carbide burr?
They're shape codes from ISO 7755, used in North American and European catalogues alike. SA is a cylinder with no end cut, SB is the same cylinder with an end cut, and SC has a radius end. The letter defines the profile; the number defines the size within it.
What is the difference between SA and SB burrs?
Only the end. SA has a plain flat face with no cutting teeth, so it works on side walls but can't be plunged. SB has teeth across the end face, so you can feed it straight into the work to open holes or square corners.
How many standard carbide burr shapes are there?
Thirteen: SA, SB, SC, SD, SE, SF, SG, SH, SJ, SK, SL, SM and SN. Custom and modified profiles exist too, but those thirteen cover almost all standard deburring, blending and stock removal work.
Can I use a 6 mm shank burr in a 1/4" die grinder?
Only if the collet is genuinely 6 mm. 1/4" is 6.35 mm, so a 6 mm shank sits loose in a 1/4" collet and slips under load. A 1/4" shank won't fit a 6 mm collet at all. Check the marking on the collet instead of assuming.
Single cut or double cut for stainless steel?
Double cut. The cross-hatch pattern breaks chips small, cuts more smoothly and gives better control in work-hardening alloys. For aluminium, brass and soft steel, single cut is better when fast stock removal and chip clearance matter more than finish.
Which burr shape is best for general deburring?
There is no single "best" shape for every job, because the right burr depends on the edge or contour you are cleaning. However, a few shapes cover most general deburring tasks: SA-5, SC-5, SF-5, SG-5
مخطط سرعة دوران مثقاب كربيد حسب المادة وقطر الرأس
معظم المطاحن الهوائية مصنفة عند 20,000-30,000 دورة في الدقيقة، وبعض الموديلات الهوائية تدعي 50,000. تقريبًا كل فشل لمثقاب كربيد نراه - تلميع، انسداد، رقائق في الشفرات، انفصال الرأس الملحوم - يعود إلى قراءة رقم واحد بشكل خاطئ:سرعة دوران المثقاب المطبوعة على المطحنة هي السرعة الحرة للمحور، وليست سرعة العمل للمثقاب في القطع.

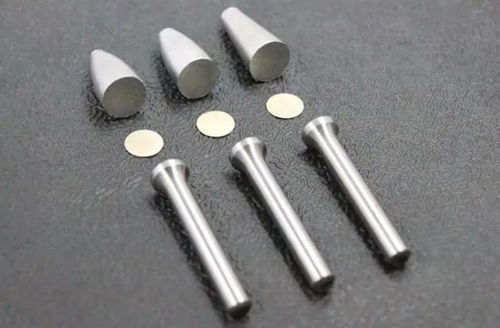

يقدم هذا المخطط نطاقات سرعة العمل حسب قطر الرأس والمادة. تم بناؤه لمثاقب الكربيد القياسية ذات الرأس الملحوم والمزدوج القطع على ساق 6 مم (1/4 بوصة). حيث تختلف مخططات الشركات المصنعة المنشورة - وهي تختلف، بما يصل إلى 3 أضعاف لنفس حجم الرأس - نأخذ القيمة الأكثر تحفظًا ونذكر ذلك.
المخطط: سرعة الدوران العاملة حسب المادة وقطر الرأس
المادة
6 مم
10 مم
12 مم
16 مم
19 مم
فولاذ طري
22,000-30,000
18,000-24,000
16,000-22,000
13,000-18,000
10,000-14,000
فولاذ مقاوم للصدأ
16,000-21,000
13,000-17,000
12,000-16,000
10,000-13,000
7,000-10,000
حديد زهر
24,000-33,000
20,000-26,000
18,000-24,000
14,000-20,000
11,000-15,000
ألومنيوم وسبائك لينة
28,000-39,000
23,000-31,000
21,000-28,000
17,000-23,000
13,000-18,000
نحاس وسبائك نحاسية
27,000-37,000
22,000-30,000
20,000-27,000
16,000-22,000
12,000-17,000
فولاذ مقوى، HRC 45+
14,000-19,000
11,000-15,000
10,000-14,000
8,000-11,000
6,000-9,000
بلاستيك و GRP
15,000-21,000
12,000-17,000
11,000-15,000
9,000-12,000
7,000-10,000
السرعة الحرة مقابل سرعة العمل
تصنيف 50,000 دورة في الدقيقة للمحور يُقاس بدون أي شيء في الظرف. ضع رأسًا بحجم 19 مم على هذا المحور وستسافر حافة القطع بسرعة تقارب 3000 متر/دقيقة - حوالي عشرة أضعاف سرعة السطح التي يمكن لحافة الكربيد الملحومة على الفولاذ تحملها. قم بتشغيلها بهذه السرعة وسوف ترتفع درجة حرارة وصلة اللحام في غضون دقائق؛ لن يفشل الرأس في اليوم الأول، بل سيفشل في الأسبوع التالي، داخل قطعة العمل. لهذا السبب فإن أكبر الرؤوس في المخطط تعمل بسرعة 10,000-14,000 دورة في الدقيقة: عند هذه السرعات، تعمل الحافة بالقرب من 600-850 متر/دقيقة، وهو ما يمكن للكربيد الملحوم التعامل معه بشكل مستمر. .
تحقق من أي خلية بمعادلة واحدة
سرعة العمل من سرعة القطع: N (دورة في الدقيقة) = Vc (متر/دقيقة) × 1000 ÷ (π × D (مم))
أمثلة عملية، كل منها يقع داخل خليته في المخطط:
رأس 12 مم في فولاذ طري، سرعة قطع مستهدفة ≈ 650 متر/دقيقة → N ≈ 17,200 دورة في الدقيقة → الخلية تقول 16,000-22,000 ✓
رأس 12 مم في فولاذ مقاوم للصدأ، سرعة قطع ≈ 470 → N ≈ 12,500 دورة في الدقيقة → الخلية تقول 12,000-16,000 ✓
رأس 12 مم في ألومنيوم، سرعة قطع ≈ 845 → N ≈ 22,400 دورة في الدقيقة → الخلية تقول 21,000-28,000 ✓
رأس 12 مم في فولاذ مقوى، سرعة قطع ≈ 420 → N ≈ 11,100 دورة في الدقيقة → الخلية تقول 10,000-14,000 ✓
المخطط هو ببساطة هذه المعادلة مع نطاقات سرعة قطع محافظة لكل مادة - الألومنيوم والنحاس يعملان بسرعة لأن الخطر هو لحام الرقائق، وليس حرارة الحافة؛ الفولاذ المقوى يعمل ببطء لأن كل نقطة من حمل القطع تهبط على وصلة لحام.
القطع المفرد أو المزدوج يغير الصف الذي تقرأه
قطع مزدوج(شفرتان متقاطعتان) يكسر الرقاقة: استخدمه للفولاذ، الفولاذ المقاوم للصدأ، الحديد الزهر. ابدأ من منتصف النطاق.
قطع مفرد(شفرة مفتوحة واحدة) يخرج الرقاقة: استخدمه للألومنيوم، النحاس، البلاستيك - المواد ذات الرقائق اللاصقة، حيث يمكنك أخذ الجزء العلوي من النطاق لأن الخلوص، وليس الحرارة، هو الحد الأقصى.
تحذير واحد في كلا الاتجاهين: لا تستخدم مثقابًا بقطع مفرد على الفولاذ المقاوم للصدأ - شفرة واحدة واسعة لا يمكنها كسر الرقاقة الخيطية وتتصلب الحافة السطحية ضدك. ومثقاب بقطع مزدوج في الألومنيوم سوف يتكتل في غضون ثوانٍ بغض النظر عما يقوله المخطط.
خمس علامات تدل على أنك تستخدم السرعة الخاطئة
علامة
سبب
حل
الرقائق تتحول إلى اللون الأزرق / القش
سريع جدًا - حرارة الحافة فوق تحمل اللحام
انخفاض 20-30٪، تحقق من الضغط
المثقاب "يتكتل" / ينسد في الألومنيوم
بطيء جدًا لرقاقة لاصقة، أو قطع مزدوج في سبائك لينة
زيادة السرعة إلى صف الألومنيوم، التبديل إلى قطع مفرد
علامات اهتزاز، أزيز
سريع جدًا بالنسبة لنسبة الرأس إلى الساق، بروز طويل جدًا
الانخفاض إلى أسفل النطاق، تقصير البروز
الحافة تصبح باهتة في دقائق
بطيء جدًا - احتكاك بدلاً من القطع
زيادة السرعة بنسبة 10-20٪ قبل استبدال المثقاب
خط اللحام يتغير لونه / الرأس يرتخي لاحقًا
تشغيل مستمر بالسرعة الحرة
عامل تصنيف المطحنة كسقف، وليس كإعداد
من أين تأتي هذه الأرقام
تنويه صريح: مخططات سرعة دوران المثاقب المنشورة تختلف - نفس الرأس بحجم 1/2 بوصة مصنف بين 8,000 و 24,000 دورة في الدقيقة حسب العلامة التجارية. نطاقاتنا مشتقة من حدود سرعة القطع للكربيد الملحوم (حوالي 750-850 متر/دقيقة مستمر)، وتم التحقق منها مقابل مخططات الشركات المصنعة المنشورة، وتميل إلى التحفظ حيثما تتعارض المصادر. إنها تقديرات هندسية، وليست بيانات اختبار معملي: عندما يتصرف جهازك، أو تركيبتك، أو مادتك بشكل مختلف، صدق العلامات الخمس أعلاه أكثر من أي مخطط - بما في ذلك مخططنا.
أسئلة متكررة
هل يمكنني استخدام مثقاب كربيد في أي مطحنة هوائية؟
أي مطحنة هوائية تقبل الساق، نعم - ولكن طابق السرعة. مطحنة هوائية كهربائية بسرعة 25,000 دورة في الدقيقة مناسبة للرؤوس حتى حوالي 12 مم؛ يجب تقييد مطحنة هوائية تعمل بالهواء المضغوط بسرعة 50,000 دورة في الدقيقة أو تركيب رأس أصغر.
ماذا يحدث إذا قمت بتشغيل مثقاب كربيد بسرعة كبيرة جدًا؟
أولاً تتغير لون الرقائق، ثم تصبح الحافة لامعة وتتوقف عن القطع، ثم تضعف وصلة اللحام. الفشل عادة ما يكون متأخرًا - المثقاب الذي "فقد رأسه فجأة" تم تشغيله بسرعة كبيرة قبل أيام.
لماذا يتكتل مثقابي في الألومنيوم حتى بالسرعة الصحيحة؟
نوع القطع الخاطئ، على الأرجح. شفرات القطع المزدوجة تحبس الرقائق اللينة. القطع المفرد، أو نمط قطع الألومنيوم (سن خشن)، هو الحل - السرعة وحدها لن تنقذ مثقابًا بقطع مزدوج في الألومنيوم.
ما هي السرعة المناسبة للفولاذ المقوى أو قوالب HRC 60؟
صف الفولاذ المقوى: 6,000-9,000 دورة في الدقيقة لرأس 19 مم، 10,000-14,000 لرأس 12 مم. إذا كان المثقاب صلبًا (غير ملحوم)، يمكنك العمل في الجزء العلوي من النطاق - انظر مثقابنا SB-5 بقطع مزدوج بحجم 1/2 بوصة للخيار القياسي للفولاذ بحجم 1/2 بوصة.هل يغير المثقاب الأطول السرعة؟الشفرات الأطول والبروز الأكبر يضيفان رافعة. عندما يكون طول الشفرة أكثر من 3 أضعاف قطر الساق، استخدم الجزء السفلي من النطاق ودع المثقاب يقوم بالعمل.
لماذا تختلف مخططات سرعة دوران الشركات المصنعة كثيرًا؟
لأن أياً منها لا ينشر بيانات اختبار معملي - كل مخطط في السوق، بما في ذلك مخططنا، هو حساب لسرعة القطع مع تحيز أمان. الاختلاف (يصل إلى 3 أضعاف) يخبرك أن المخطط هو نقطة انطلاق وأن العلامات الخمس هي حلقة التغذية الراجعة الحقيقية.
كيف أعرف أن مثقابي قد اهترأ؟
ليس بالمظهر وحده. يمكن إعادة تشكيل الحافة الباهتة بحجر شحذ؛ استبدل المثقاب عندما يكون شكل الشفرة مستديرًا بشكل واضح أو يظل معدل الإزالة منخفضًا حتى بعد إعادة ضبط السرعة.
احصل على عرض سعر
أخبرنا بالمادة وحجم الرأس الذي تستخدمه - نحن نصنع سلاسل مثاقب الكربيد SA و SB و SC بكل من القياسات الإمبراطورية والمترية، وسنؤكد لك السرعة ونوع القطع المناسبين لتطبيقك.
