| اسم العلامة التجارية: | BABOS |
| رقم الطراز: | BBSTD3D55120 |
| الـ MOQ: | عشرة قطع |
| السعر: | قابل للتفاوض |
| شروط الدفع: | L/C، D/A، D/P، T/T، Western Union |
| قدرة الإمداد: | 10000 قطعة شهرياً |

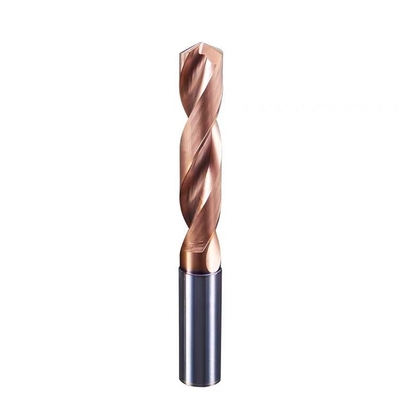

HRC55 3D Solid Carbide Twist Drill هي أداة حفر عالية الأداء معروفة بتنوعها ودقة وتستخدم للحديد الزهري، الحديد القابل للتنايل، الفولاذ المقاوم للصدأ،وتجهيز المواد الشائعة الأخرى.
| مادة المنتج | كربيد التونغستين |
| عدد الناي | 2 |
| نوع الطلاء/النهائي | أيتين |
| التسامح | 0.000mm~-0.050mm |
| نوع الجهاز | آلات CNC |
| تخصيص | متاحة |
| صناعة المعدات الأولية | متاحة |
| طلب العينة | تم قبولها |
مواصفات المنتج:
| HRC55 حفر الكربيد الصلب التواء ((3D) | |||||||||||
| HRC 55°: المواد الخام: استخدم ZK30UF مع محتوى Co 10٪ وحجم الحبوب 0.6um. | |||||||||||
| الطول القياسي | الطلاء: TiSiN HRC 55 درجة |
الطول القياسي | الطلاء: TiSiN HRC 55 درجة |
||||||||
| (أقطع (ديا | قطع الطول. | (شانك ديا) | الطول الكلي | النغمات | أمر رقم | (أقطع (ديا | قطع الطول. | (شانك ديا) | الطول الكلي | النغمات | أمر رقم |
| D ((ملم) | Lc(ملم) | د(ملم) | (ل)(ملم) | د(ملم) | Lc(ملم) | د(ملم) | (ل)(ملم) | ||||
| 1 | 12 | 3 | 42 | 2 | BBSTD3D55010 | 10.1 | 51 | 11 | 95 | 2 | BBSTD3D55101 |
| 1.1 | 2 | BBSTD3D55011 | 10.2 | 2 | BBSTD3D55102 | ||||||
| 1.2 | 2 | BBSTD3D55012 | 10.3 | 2 | BBSTD3D55103 | ||||||
| 1.3 | 2 | BBSTD3D55013 | 10.4 | 2 | BBSTD3D55104 | ||||||
| 1.4 | 2 | BBSTD3D55014 | 10.5 | 2 | BBSTD3D55105 | ||||||
| 1.5 | 2 | BBSTD3D55015 | 10.6 | 2 | BBSTD3D55106 | ||||||
| 1.6 | 2 | BBSTD3D55016 | 10.7 | 2 | BBSTD3D55107 | ||||||
| 1.7 | 2 | BBSTD3D55017 | 10.8 | 2 | BBSTD3D55108 | ||||||
| 1.8 | 2 | BBSTD3D55018 | 10.9 | 2 | BBSTD3D55109 | ||||||
| 1.9 | 2 | BBSTD3D55019 | 11 | 2 | BBSTD3D55110 | ||||||
| 2 | 2 | BBSTD3D55020 | 11.1 | 54 | 12 | 102 | 2 | BBSTD3D55111 | |||
| 2.1 | 14 | 3 | 50 | 2 | BBSTD3D55021 | 11.2 | 2 | BBSTD3D55112 | |||
| 2.2 | 2 | BBSTD3D55022 | 11.3 | 2 | BBSTD3D55113 | ||||||
| 2.3 | 2 | BBSTD3D55023 | 11.4 | 2 | BBSTD3D55114 | ||||||
| 2.4 | 2 | BBSTD3D55024 | 11.5 | 2 | BBSTD3D55115 | ||||||
| 2.5 | 2 | BBSTD3D55025 | 11.6 | 2 | BBSTD3D55116 | ||||||
| 2.6 | 2 | BBSTD3D55026 | 11.7 | 2 | BBSTD3D55117 | ||||||
| 2.7 | 2 | BBSTD3D55027 | 11.8 | 2 | BBSTD3D55118 | ||||||
| 2.8 | 2 | BBSTD3D55028 | 11.9 | 2 | BBSTD3D55119 | ||||||
| 2.9 | 2 | BBSTD3D55029 | 12 | 2 | BBSTD3D55120 | ||||||
| 3 | 2 | BBSTD3D55030 | 12.1 | 57 | 13 | 102 | 2 | BBSTD3D55121 | |||
| 3.1 | 20 | 4 | 60 | 2 | BBSTD3D55031 | 12.2 | 2 | BBSTD3D55122 | |||
| 3.2 | 2 | BBSTD3D55032 | 12.3 | 2 | BBSTD3D55123 | ||||||
| 3.3 | 2 | BBSTD3D55033 | 12.4 | 2 | BBSTD3D55124 | ||||||
| 3.4 | 2 | BBSTD3D55034 | 12.5 | 2 | BBSTD3D55125 | ||||||
| 3.5 | 2 | BBSTD3D55035 | 12.6 | 2 | BBSTD3D55126 | ||||||
| 3.6 | 2 | BBSTD3D55036 | 12.7 | 2 | BBSTD3D55127 | ||||||
| 3.7 | 2 | BBSTD3D55037 | 12.8 | 2 | BBSTD3D55128 | ||||||
| 3.8 | 2 | BBSTD3D55038 | 12.9 | 2 | BBSTD3D55129 | ||||||
| 3.9 | 2 | BBSTD3D55039 | 13 | 2 | BBSTD3D55130 | ||||||
| 4 | 2 | BBSTD3D55040 | 13.1 | 60 | 14 | 107 | 2 | BBSTD3D55131 | |||
| 4.1 | 24 | 5 | 62 | 2 | BBSTD3D55041 | 13.2 | 2 | BBSTD3D55132 | |||
| 4.2 | 2 | BBSTD3D55042 | 13.3 | 2 | BBSTD3D55133 | ||||||
| 4.3 | 2 | BBSTD3D55043 | 13.4 | 2 | BBSTD3D55134 | ||||||
| 4.4 | 2 | BBSTD3D55044 | 13.5 | 2 | BBSTD3D55135 | ||||||
| 4.5 | 2 | BBSTD3D55045 | 13.6 | 2 | BBSTD3D55136 | ||||||
| 4.6 | 2 | BBSTD3D55046 | 13.7 | 2 | BBSTD3D55137 | ||||||
| 4.7 | 2 | BBSTD3D55047 | 13.8 | 2 | BBSTD3D55138 | ||||||
| 4.8 | 2 | BBSTD3D55048 | 13.9 | 2 | BBSTD3D55139 | ||||||
| 4.9 | 2 | BBSTD3D55049 | 14 | 2 | BBSTD3D55140 | ||||||
| 5 | 2 | BBSTD3D55050 | 14.1 | 62 | 15 | 111 | 2 | BBSTD3D55141 | |||
| 5.1 | 28 | 6 | 66 | 2 | BBSTD3D55051 | 14.2 | 2 | BBSTD3D55142 | |||
| 5.2 | 2 | BBSTD3D55052 | 14.3 | 2 | BBSTD3D55143 | ||||||
| 5.3 | 2 | BBSTD3D55053 | 14.4 | 2 | BBSTD3D55144 | ||||||
| 5.4 | 2 | BBSTD3D55054 | 14.5 | 2 | BBSTD3D55155 | ||||||
| 5.5 | 2 | BBSTD3D55055 | 14.6 | 2 | BBSTD3D55146 | ||||||
| 5.6 | 2 | BBSTD3D55056 | 14.7 | 2 | BBSTD3D55147 | ||||||
| 5.7 | 2 | BBSTD3D55057 | 14.8 | 2 | BBSTD3D55148 | ||||||
| 5.8 | 2 | BBSTD3D55058 | 14.9 | 2 | BBSTD3D55149 | ||||||
| 5.9 | 2 | BBSTD3D55059 | 15 | 2 | BBSTD3D55150 | ||||||
| 6 | 2 | BBSTD3D55060 | 15.1 | 64 | 16 | 115 | 2 | BBSTD3D55151 | |||
| 6.1 | 34 | 7 | 74 | 2 | BBSTD3D55061 | 15.2 | 2 | BBSTD3D55152 | |||
| 6.2 | 2 | BBSTD3D55062 | 15.3 | 2 | BBSTD3D55153 | ||||||
| 6.3 | 2 | BBSTD3D55063 | 15.4 | 2 | BBSTD3D55154 | ||||||
| 6.4 | 2 | BBSTD3D55064 | 15.5 | 2 | BBSTD3D55155 | ||||||
| 6.5 | 2 | BBSTD3D55065 | 15.6 | 2 | BBSTD3D55156 | ||||||
| 6.6 | 2 | BBSTD3D55066 | 15.7 | 2 | BBSTD3D55157 | ||||||
| 6.7 | 2 | BBSTD3D55067 | 15.8 | 2 | BBSTD3D55158 | ||||||
| 6.8 | 2 | BBSTD3D55068 | 15.9 | 2 | BBSTD3D55159 | ||||||
| 6.9 | 2 | BBSTD3D55069 | 16 | 2 | BBSTD3D55160 | ||||||
| 7 | 2 | BBSTD3D55070 | 16.1 | 66 | 17 | 119 | 2 | BBSTD3D55161 | |||
| 7.1 | 40 | 8 | 79 | 2 | BBSTD3D55071 | 16.2 | 2 | BBSTD3D55162 | |||
| 7.2 | 2 | BBSTD3D55072 | 16.3 | 2 | BBSTD3D55163 | ||||||
| 7.3 | 2 | BBSTD3D55073 | 16.4 | 2 | BBSTD3D55164 | ||||||
| 7.4 | 2 | BBSTD3D55074 | 16.5 | 2 | BBSTD3D55165 | ||||||
| 7.5 | 2 | BBSTD3D55075 | 16.6 | 2 | BBSTD3D55166 | ||||||
| 7.6 | 2 | BBSTD3D55076 | 16.7 | 2 | BBSTD3D55167 | ||||||
| 7.7 | 2 | BBSTD3D55077 | 16.8 | 2 | BBSTD3D55168 | ||||||
| 7.8 | 2 | BBSTD3D55078 | 16.9 | 2 | BBSTD3D55169 | ||||||
| 7.9 | 2 | BBSTD3D55079 | 17 | 2 | BBSTD3D55170 | ||||||
| 8 | 2 | BBSTD3D55080 | 17.1 | 66 | 18 | 123 | 2 | BBSTD3D55171 | |||
| 8.1 | 43 | 9 | 84 | 2 | BBSTD3D55081 | 17.2 | 2 | BBSTD3D55172 | |||
| 8.2 | 2 | BBSTD3D55082 | 17.3 | 2 | BBSTD3D55173 | ||||||
| 8.3 | 2 | BBSTD3D55083 | 17.4 | 2 | BBSTD3D55174 | ||||||
| 8.4 | 2 | BBSTD3D55084 | 17.5 | 2 | BBSTD3D55175 | ||||||
| 8.5 | 2 | BBSTD3D55085 | 17.6 | 2 | BBSTD3D55176 | ||||||
| 8.6 | 2 | BBSTD3D55086 | 17.7 | 2 | BBSTD3D55177 | ||||||
| 8.7 | 2 | BBSTD3D55087 | 17.8 | 2 | BBSTD3D55178 | ||||||
| 8.8 | 2 | BBSTD3D55088 | 17.9 | 2 | BBSTD3D55179 | ||||||
| 8.9 | 2 | BBSTD3D55089 | 18 | 2 | BBSTD3D55180 | ||||||
| 9 | 2 | BBSTD3D55090 | 18.1 | 70 | 19 | 127 | 2 | BBSTD3D55181 | |||
| 9.1 | 47 | 10 | 89 | 2 | BBSTD3D55091 | 18.2 | 2 | BBSTD3D55182 | |||
| 9.2 | 2 | BBSTD3D55092 | 18.5 | 2 | BBSTD3D55185 | ||||||
| 9.3 | 2 | BBSTD3D55093 | 19 | 2 | BBSTD3D55190 | ||||||
| 9.4 | 2 | BBSTD3D55094 | |||||||||
| 9.5 | 2 | BBSTD3D55095 | 19.1 | 70 | 20 | 131 | 2 | BBSTD3D55191 | |||
| 9.6 | 2 | BBSTD3D55096 | 19.2 | BBSTD3D55192 | |||||||
| 9.7 | 2 | BBSTD3D55097 | 19.5 | BBSTD3D55195 | |||||||
| 9.8 | 2 | BBSTD3D55098 | 19.7 | BBSTD3D55197 | |||||||
| 9.9 | 2 | BBSTD3D55099 | 20 | BBSTD3D55120 | |||||||
| 10 | 2 | BBSTD3D55100 | |||||||||
